Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex, DIMM Fit

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)

Intel Z890 Chipset
1 x PCIe 4.0x16 slots (supports x4 modes)

Ổ cứng hỗ trợ

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset

M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4 modes)
M.2_4 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 (Key M), type2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and cooling ports
1 x 4-pin CPU fan header
1 x 4-pin CPU OPT fan port
1 x 4-pin AIO pump header
5 x 4-pin frame fan header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V CPU power connector
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB 1 x USB 20Gbps header (USB Type-C support)

2 x USB 5Gbps header supporting 4 additional USB 5Gbps ports

2 x USB 2.0 headers supporting 4 additional USB 2.0 ports

Accessories

3 x Addressable Gen2 headers

1 x Chassis Intrusion connector

1 x CPU Over Voltage button

1 x Front panel audio header (F_AUDIO)

1 x Start button 1 x 10-1 pin Front System Panel header

1 x Thermal sensor header

1 x header Thunderbolt (USB4)

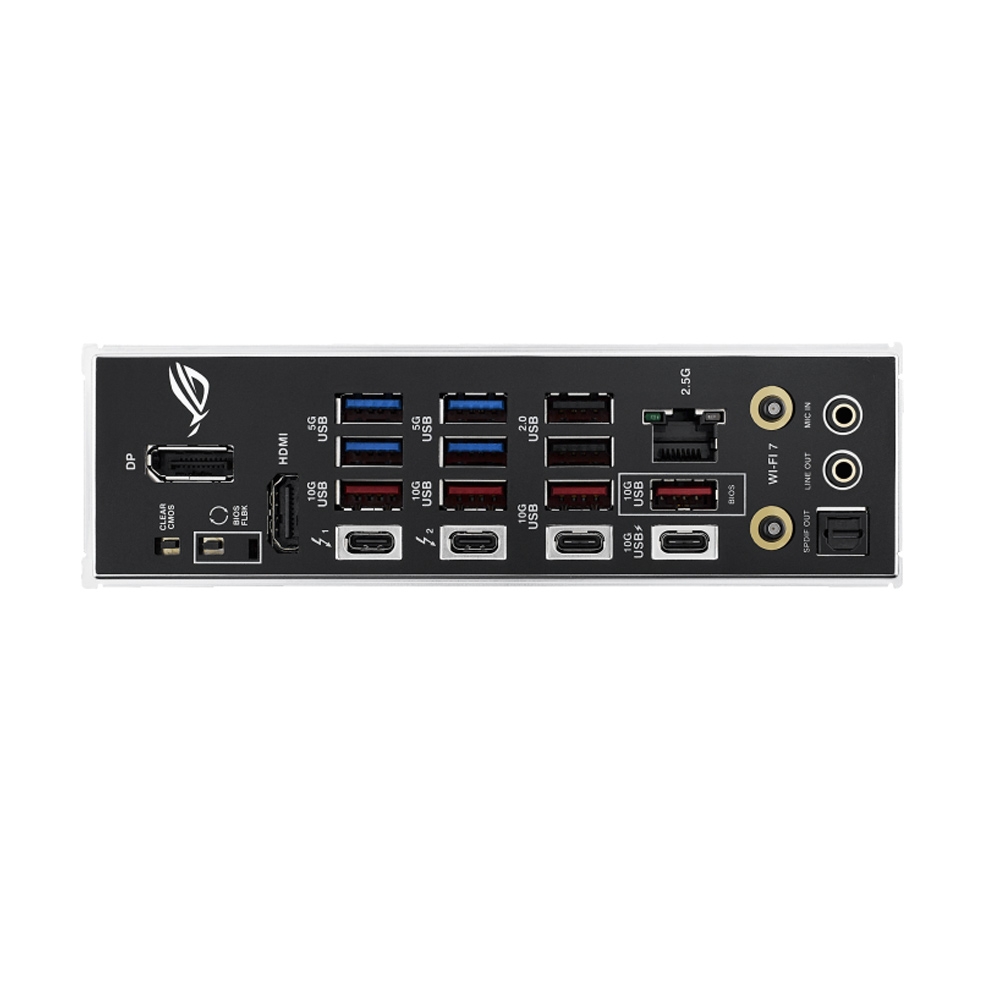

Cổng kết nối (Back Panel)

2 x Thunderbolt 5 USB Type-C ports
1 x USB 20Gbps port (1 x USB Type-C)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

LAN / Wireless

LAN

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
